Control Freak

Universal Bus Interface for DALI

Overview

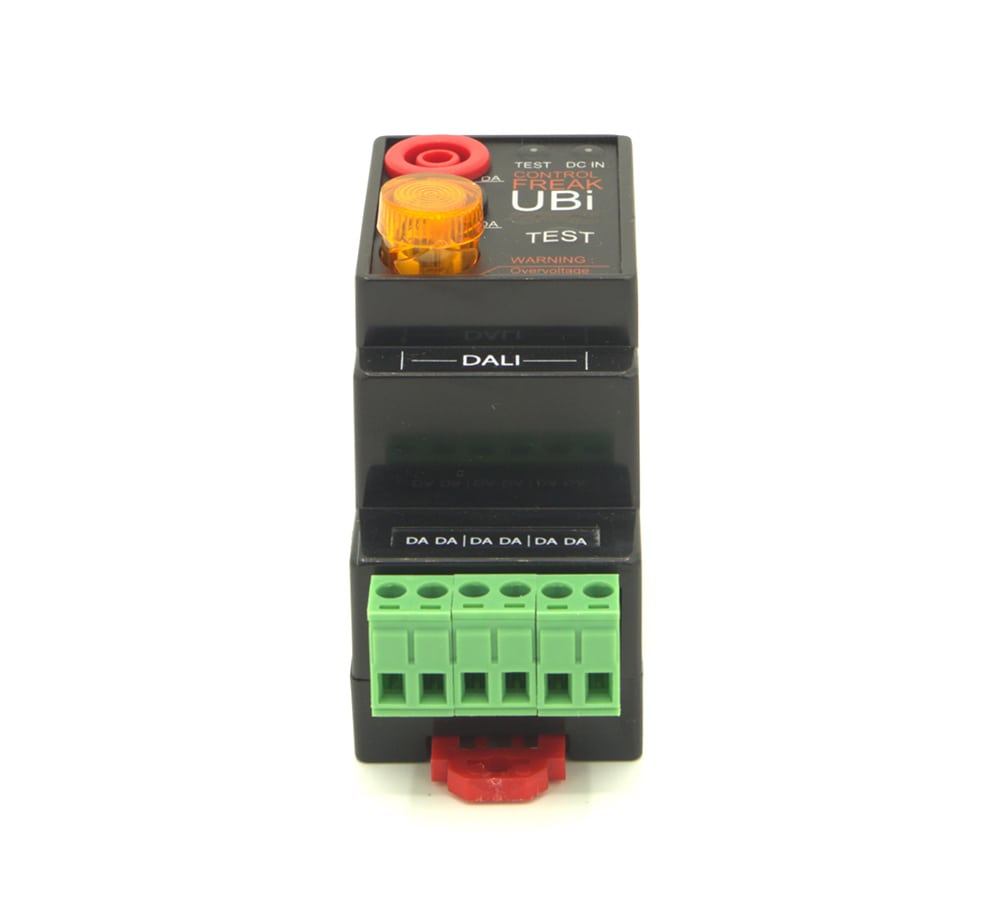

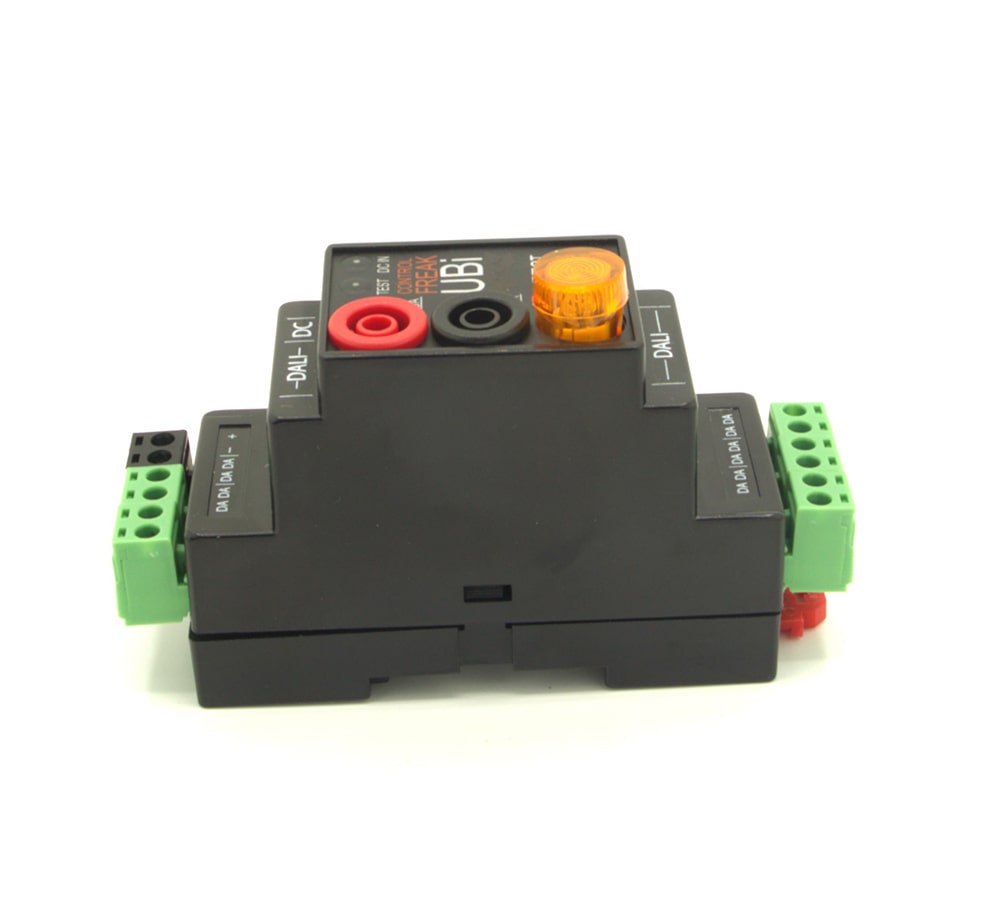

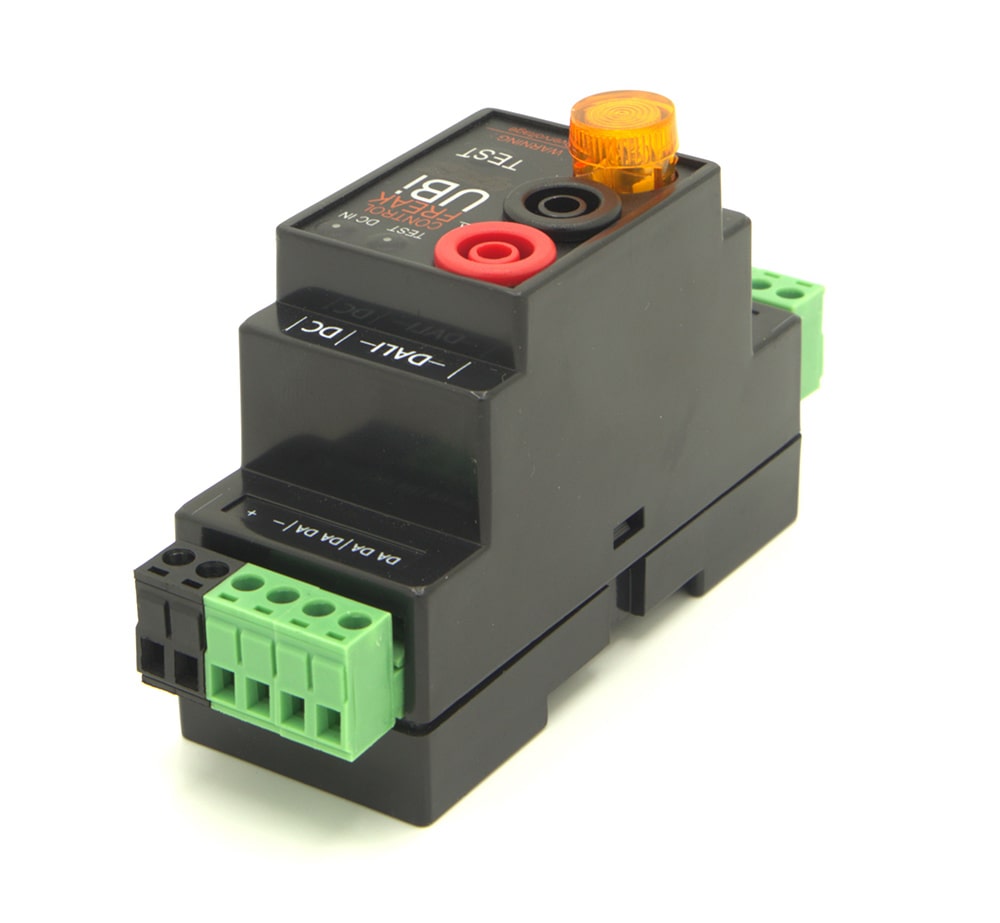

The UBi Test is designed to work with external DALI line power supplies such as the UBi Power or suitable 3rd party DALI Power Supplies and features enhanced test capabilities, enabling the adjustment of the DALI line to its minimum or maximum setting via a button press. This streamlines the commissioning process, aiding in the quick identification of any faults during installation.

The UBi Test is ideally powered by 24VDC Safety Extra Low Voltage, and it accommodates up to five separate branches for a DALI line. Simply connect a DALI line to one of the 2-way pluggable terminals, and then select from the remaining terminal pairs to route your cable in any desired configuration.

Checking DALI line voltage has never been safer or quicker – simply plug in your favourite multimeter via the banana jacks. This feature significantly enhances the ease of use with our ADDICT V3 (commissioning device).

Features

• Test Functionality: Quick Min/Max adjustment of the DALI line with a button press for efficient fault detection during installation.
• Multiple Branches: Offers five branch connections for a DALI line using 2-way pluggable terminals for flexible cable routing.
• Safety and Ease of Use: Features banana jack inputs for simple and safe voltage checking with a multimeter.
• Compatibility with ADDICT V3: Designed for seamless integration with the ADDICT V3 commissioning device.
