DALI 0-10V Converter

Overview

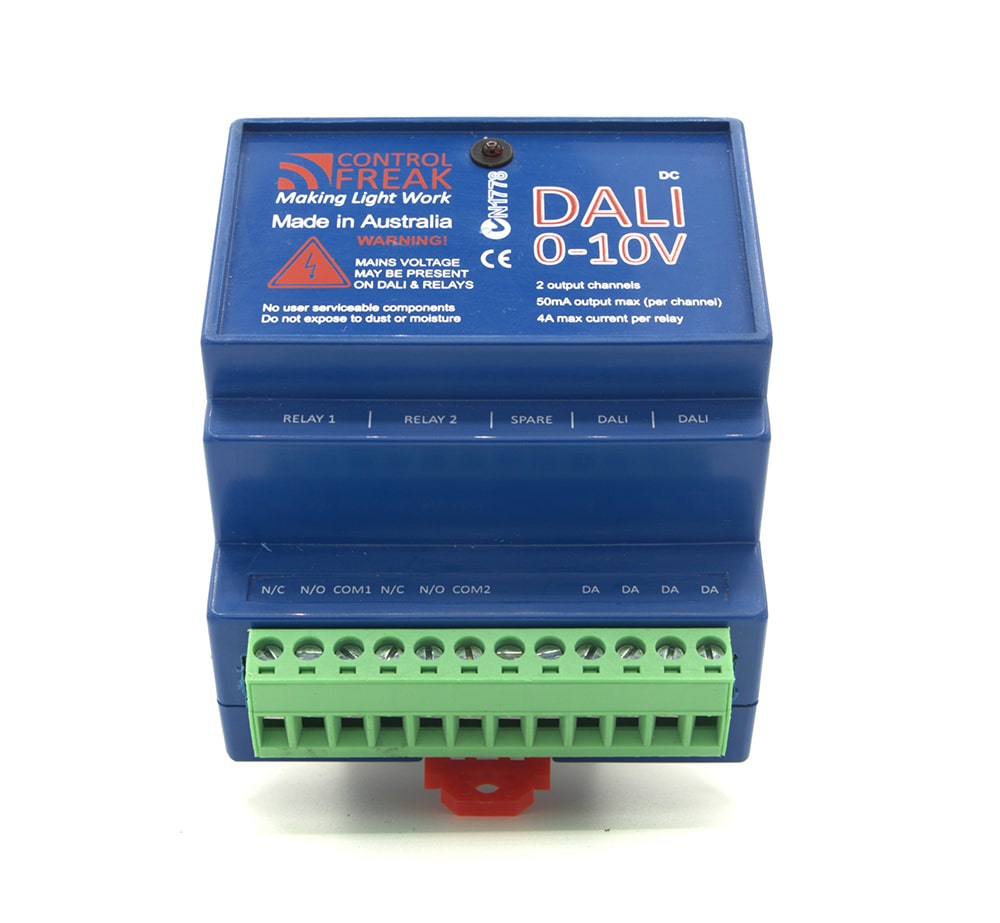

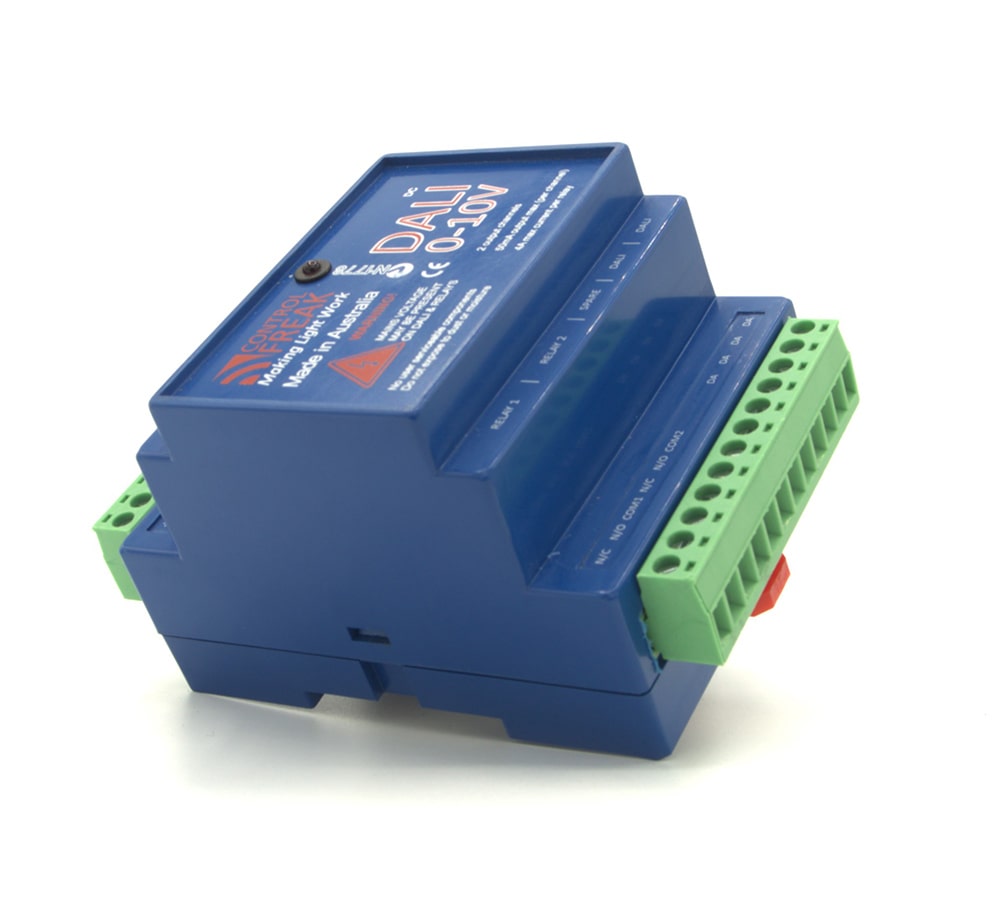

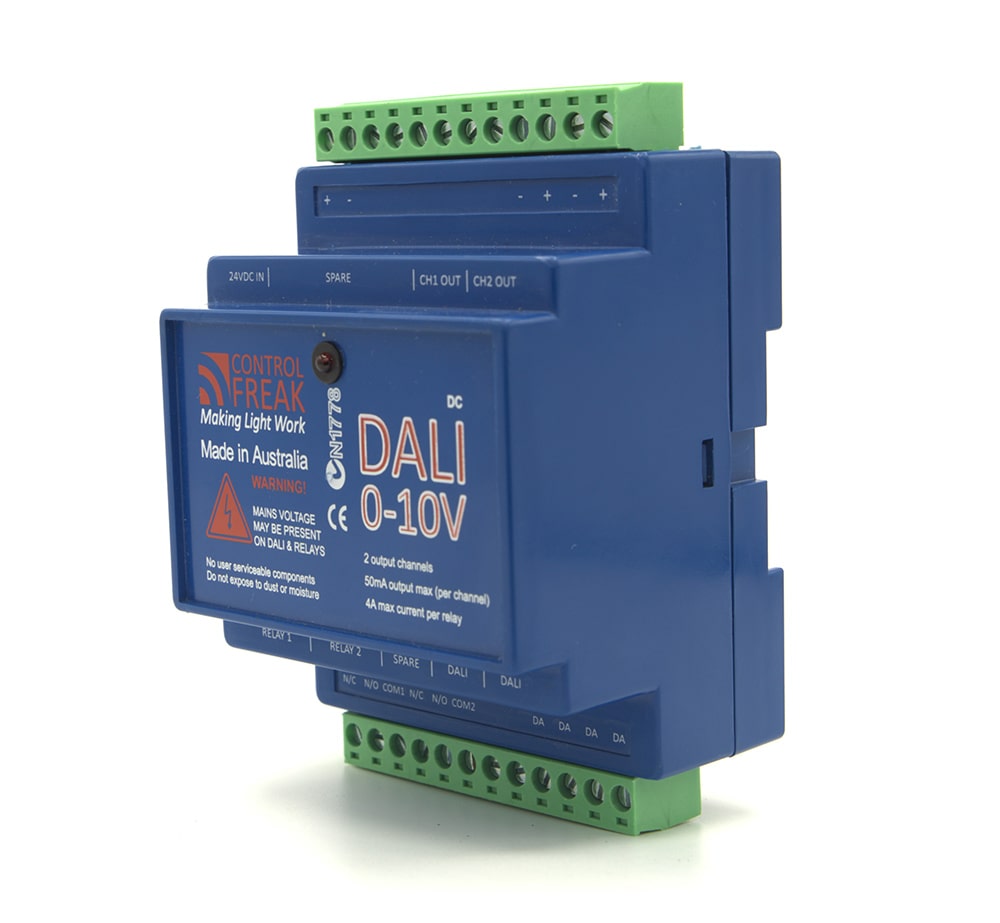

The DALI 0-10V Converter is a din-mountable device designed to bridge the gap between digital DALI controls and analog 0-10V lighting. This versatile converter boasts dual-channel functionality, enabling it to manage two independent 10V control lines with ease.

Its ability to automatically sink or source up to 50mA per channel makes it a flexible solution for a variety of scenarios. The removable 12-way terminals, present at both the top and bottom of the device, are rated for 250VAC. DALI 0-10V Converter is compliant with DALI Type 5 specifications, ensuring compatibility with a wide range of DALI-equipped lighting fixtures and controllers.

Features

• Dual-Channel Functionality: Converts DALI to 1-10V (plus integral relay)
• Automatic Current Sinking or Sourcing: Capable of automatically adjusting to sink or source up to 50mA per channel
• Removable 12-Way Terminals: Features top and bottom 12-way terminals rated for 250VAC, facilitating easy and safe wiring connections for both input and output
• DALI Type 5 Compliance: Ensures broad compatibility with an extensive range of DALI-equipped lighting fixtures and controllers, guaranteeing seamless integration into existing DALI systems
• Dimming Curve Flexibility: Able to provide default DALI logarithmic dimming curve OR user-selectable linear dimming curve
